OpenResty XRay™ On-Premise Deployment on Azure Kubernetes Service

# Overview

OpenResty XRay’s architecture adopts a distributed deployment model. The console service runs in Docker containers managed by Kubernetes, while the Agent is deployed on target machines, enabling flexible monitoring and management.

The XRay server-side architecture mainly consists of two Pods, each containing multiple sub-services:

1. OpenResty XRay Console Pod:

   • xray-console: Provides XRay’s web management interface, the main entry point for user interaction
   • xray-console-pg: Serves as the database backend for the web service, storing console-related data

2. OpenResty XRay BuildBox Pod:

   • build-box-[dist]: Responsible for building XRay tools, where dist represents the corresponding operating system distribution
   • xray-tenant-db: Provides query interfaces for xray-console and build-box-[dist] services, following the ‘private library -> public library’ query order. Note: This service only initiates queries to the public library and does not upload data to the public library
   • xray-tenant-db-pg: Serves as the backend storage for the customer’s private software database

In the following deployment example, we will use Azure Disk as the data volume persistence solution to ensure data reliability and durability.

# Creating a Kubernetes Cluster

Before installing OpenResty XRay, if you haven’t created a Kubernetes cluster on Azure, you need to create one first. You can refer to our video tutorial (https://www.youtube.com/watch?v=-asOidukUw8) for detailed steps on creating a Kubernetes cluster on Azure.

After creating the cluster, please configure the following environment variables, which will be used in subsequent steps:

export AZ_SUBSCRIPTION_ID=<AZ_SUBSCRIPTION_ID>
export AKS_CLUSTER_RESOURCE_GROUP=AKS
export AKS_NAME=xray-console

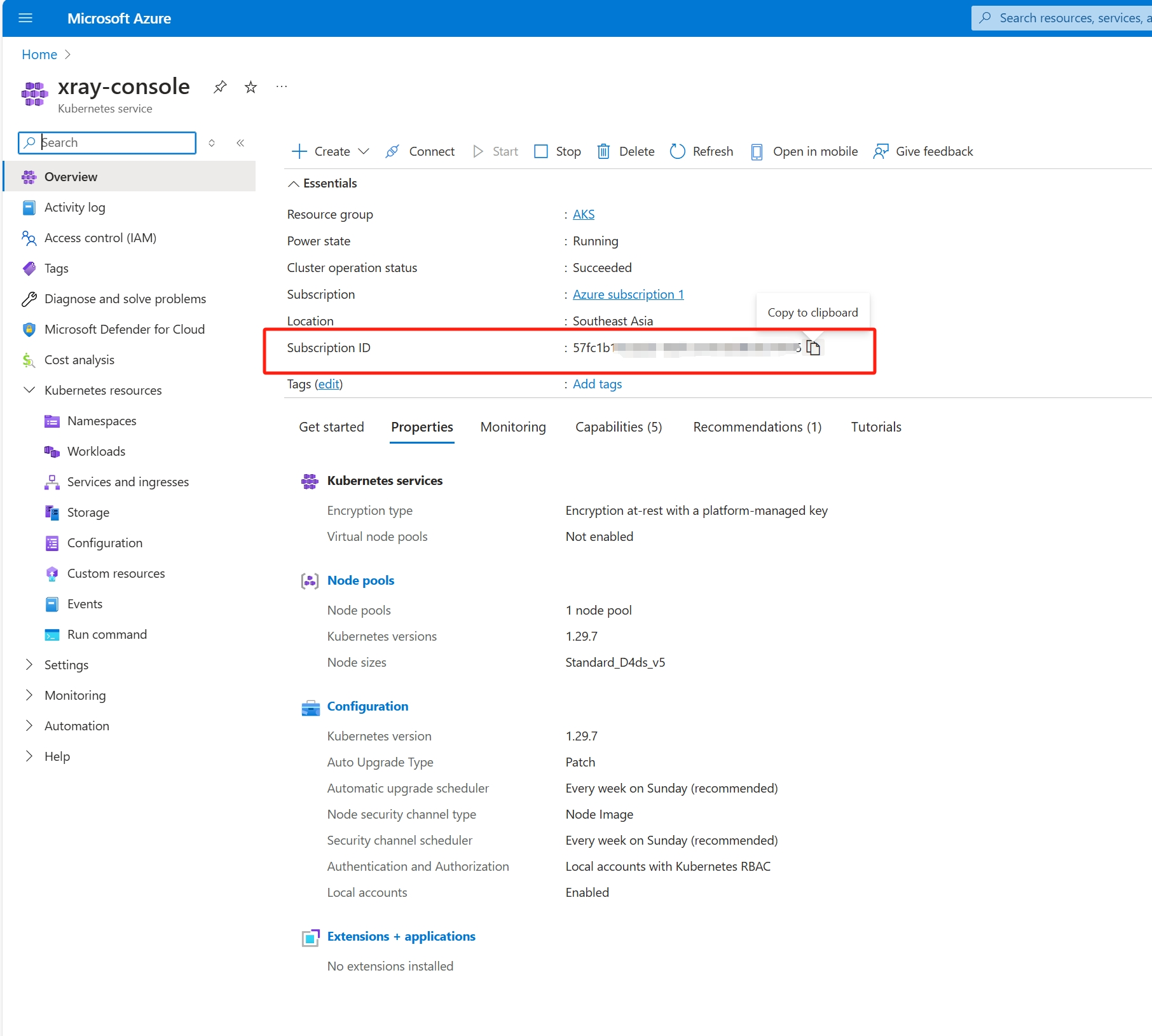

Note: Please copy the AZ_SUBSCRIPTION_ID from the Subscription ID field on the Kubernetes cluster page.

Next, install the Azure command-line tool az, and execute the following command to log in to your Azure account:

az login --use-device-code

Execute the following command to configure kubectl on your local machine to connect to the Kubernetes cluster on Azure:

az aks get-credentials --resource-group $AKS_CLUSTER_RESOURCE_GROUP --name $AKS_NAME

After completing these steps, you can start installing OpenResty XRay.

# Installing OpenResty XRay Console Service

# 1. Hardware Requirements

To ensure smooth operation of OpenResty XRay, please meet the following hardware requirements:

• Basic Kubernetes platform
• Storage configuration:
  • xray-console pod: 500Gi hard disk
  • xray-console-pg pod: 1Ti hard disk
  • build-box container in tenant-db pod: 100Gi hard disk
  • tenant-db container in tenant-db pod: 50Gi hard disk
  • tenant-db-pg container in tenant-db pod: 50Gi hard disk
• Memory requirement: At least 1GB memory allocated for each container

Note:

• Hard disk usage reference: Based on experience, the 30-day cycle sampling data growth for a single Agent is approximately 10GB

# 2. Configuring Image Repository Access Credentials

To ensure the Kubernetes cluster can access the OpenResty image repository, please follow these steps to create the necessary namespace and Secret:

1. Create a dedicated namespace:

kubectl create ns openresty-xray

2. Create a Docker repository Secret using the credentials provided in the email:

kubectl create secret docker-registry openresty-xray \
  --docker-server=registry.openresty.com \
  --docker-username=<docker-registry username> \
  --docker-password=<docker-registry password> \
  -n openresty-xray

Make sure to replace <docker-registry username> and <docker-registry password> with the actual username and password.

# 3. Creating Console Certificate Secret (Optional)

If you need to use a custom certificate, you need to perform this step. If skipped, the console will use the built-in self-signed certificate.

Place the certificate for the XRay server’s corresponding domain in the cert directory:

$ ls cert/
ssl.crt  ssl.key

Use the following command to create the secret:

kubectl create secret generic cert-secret --from-file=cert -n openresty-xray

Find the following lines in the aks-kubernetes.yml file and uncomment them to use the custom certificate:

#- mountPath: /usr/local/orxray-console/conf/cert
#  name: cert
#  readOnly: true
...
volumes:
#- name: cert
#  secret:
#    secretName: cert-secret

The environment variable in the aks-kubernetes.yml file needs to be consistent with the domain name in the certificate:

        - name: CONSOLE_HOST
          value: xxx.xx.com

# 4. Using Azure Disk as Data Volume Persistence Solution

When deploying the server-side, we need to provide persistent data storage for certain components. This section will introduce how to use Azure Disk to achieve this goal.

# 4.1 Creating Azure Disks

First, we need to create several Azure Disks to store data for different components. Here are the steps for the creation process:

1. Set environment variables

   Before starting, please ensure you set the following environment variables. If you’ve already configured them in previous sections, you can skip this step.

   export AZ_SUBSCRIPTION_ID=<AZ_SUBSCRIPTION_ID>
   export AKS_CLUSTER_RESOURCE_GROUP=AKS
   export AKS_NAME=xray-console


2. Configure disk sizes

   Set the required disk sizes for each component (in GB):

   export ORXRAY_CONSOLE_DISK_SIZE=500
   export ORXRAY_CONSOLE_PG_DISK_SIZE=1024
   export ORXRAY_BUILDBOX_DISK_SIZE=100
   export ORXRAY_TENANT_DB_DISK_SIZE=50
   export ORXRAY_TENANT_DB_PG_DISK_SIZE=50


   Note: These are recommended disk sizes, you can adjust them based on your actual needs.

3. Get AKS node resource group

   Execute the following command to get the name of the AKS node resource group:

   AKS_NODE_RESOURCE_GROUP=$(az aks show \
       --resource-group $AKS_CLUSTER_RESOURCE_GROUP \
       --name $AKS_NAME --query nodeResourceGroup -o tsv)


4. Create Azure Disks

   Use the following commands to create corresponding Azure Disks for each component:

   # Create console disk
   az disk create \
     --resource-group $AKS_NODE_RESOURCE_GROUP \
     --name orxray_console_disk \
     --size-gb $ORXRAY_CONSOLE_DISK_SIZE \
     --query id --output tsv

   # Create console-pg disk
   az disk create \
     --resource-group $AKS_NODE_RESOURCE_GROUP \
     --name orxray_console_pg_disk \
     --size-gb $ORXRAY_CONSOLE_PG_DISK_SIZE \
     --query id --output tsv

   # Create build-box disk
   az disk create \
     --resource-group $AKS_NODE_RESOURCE_GROUP \
     --name orxray_buildbox_disk \
     --size-gb $ORXRAY_BUILDBOX_DISK_SIZE \
     --query id --output tsv

   # Create tenant-db disk
   az disk create \
     --resource-group $AKS_NODE_RESOURCE_GROUP \
     --name orxray_tenant_db_disk \
     --size-gb $ORXRAY_TENANT_DB_DISK_SIZE \
     --query id --output tsv

   # Create tenant-db-pg disk
   az disk create \
     --resource-group $AKS_NODE_RESOURCE_GROUP \
     --name orxray_tenant_db_pg_disk \
     --size-gb $ORXRAY_TENANT_DB_PG_DISK_SIZE \
     --query id --output tsv


Through these steps, we have successfully created the required Azure Disks, providing a persistent storage solution for each component.

Note: For more information about Azure Disk and AKS, please refer to the following official documentation:

• Azure Disk volumes
• Azure CLI: disk create

# 4.2 Using the aks-kubernetes-pv.yml.sample file from the email attachment

You need to replace SUBSCRIPTION_ID and AKS_NODE_RESOURCE_GROUP with the current values being used. You can also modify the size of the corresponding persistent volumes based on the size of the created disks.

sed -i "s/<SUBSCRIPTION_ID>/$AZ_SUBSCRIPTION_ID/g" aks-kubernetes-pv.yml.sample
sed -i "s/<AKS_NODE_RESOURCE_GROUP>/$AKS_NODE_RESOURCE_GROUP/g" aks-kubernetes-pv.yml.sample

kubectl apply -f aks-kubernetes-pv.yml.sample

# 5. Deploying the Server-side to Kubernetes

After completing the aforementioned preparations, we can start deploying the server-side to the Kubernetes cluster. This process is straightforward:

1. Prepare the deployment file Use the aks-kubernetes.yml file provided in the email attachment. This file contains all necessary Kubernetes resource definitions.

2. Execute the deployment command Run the following command in the command line:

   kubectl apply -f aks-kubernetes.yml


   This command will create or update the corresponding resources in the Kubernetes cluster according to the configuration in the YAML file.

3. Verify the deployment After deployment, you can use commands like kubectl get pods to check the running status of each component, ensuring all Pods have started successfully.

   $ kubectl get pods -n openresty-xray

   NAME                             READY   STATUS    RESTARTS   AGE
   xray-console-9d4b7d8c9-wb855     2/2     Running   0          22m
   xray-tenant-db-886cfd856-gtpbc   10/10   Running   0          22m


# 6. Accessing the Service

After deployment, we need to expose the xray-console service through Ingress. Here are the configuration steps and considerations:

# 6.1 Configuring Ingress

We need to use Ingress to expose port 443 of the xray-console service. For detailed configuration guidelines, you can refer to the Azure official documentation: Use Application Routing in AKS.

Here’s also an Ingress configuration example for verification:

Note: This configuration is for testing purposes only. It’s not recommended to use HTTP in production environments.

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: xray-ingress
  namespace: openresty-xray
spec:
  ingressClassName: webapprouting.kubernetes.azure.com
  defaultBackend:
    service:
      name: xray-console
      port:
        number: 80

# 6.2 Applying Ingress Configuration

1. Save the above configuration as ingress.yml file.

2. Execute the following command to apply the configuration:

   kubectl apply -f ingress.yml


3. Verify Ingress status:

   kubectl get ingress -n openresty-xray


   You will see output similar to the following:

   NAME           CLASS                                HOSTS   ADDRESS         PORTS   AGE
   xray-ingress   webapprouting.kubernetes.azure.com   *       xx.xx.xx.xx     80      161m


# 6.3 Accessing the Service

Use the IP address in the ADDRESS field of Ingress to access the service http://xx.xx.xx.xx.

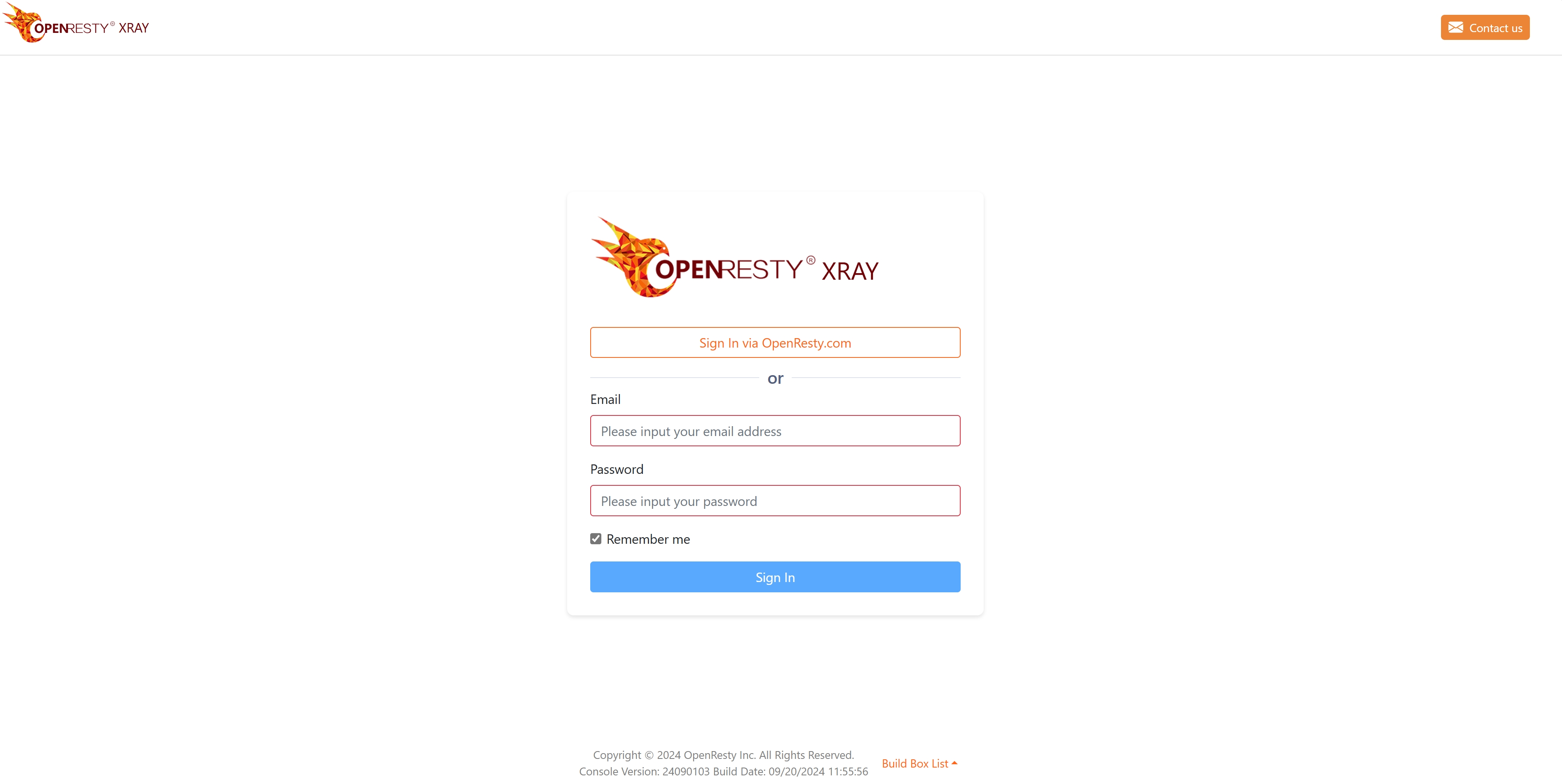

If you see the following login interface, it indicates that the service has been successfully deployed:

Notes:

• In production environments, it’s strongly recommended to configure HTTPS to ensure communication security.
• Consider setting up a domain name and configuring corresponding DNS records for more convenient access to the service.

By following these steps, you should be able to successfully access the deployed xray-console service. If you encounter any issues, please check the Ingress configuration and network settings, or refer to relevant documentation for troubleshooting.

# Installing OpenResty XRay Agent Service

The XRay Agent runs on the target machine. After installation, the Agent communicates with the self-deployed console service, and the Agent installation is also completed with the help of the console service:

Access the console service backend in your browser, and use the username and password provided in the email to log in. After logging in, you will see the installation wizard and supported operating systems. Follow the prompts in the installation wizard to install the Agent.

After installing the Agent, you can modify the password and add new users in the User tab on the left side.

# Daily Operations

# Viewing Service POD Status

$ kubectl get pods -n openresty-xray

NAME                             READY   STATUS    RESTARTS   AGE
xray-console-9d4b7d8c9-wb855     2/2     Running   0          22m
xray-tenant-db-886cfd856-gtpbc   10/10   Running   0          22m

# Viewing Console Service Logs

$ kubectl logs --tail=10 -n openresty-xray -l app=xray-console -c xray-console

# Checking Service Status

$ kubectl describe pod xray-console-5d457bb49d-q49f8 -n openresty-xray

# Service Upgrade

First, stop the old Pods, then start the new Pods. Wait until the new Pods start successfully, and the upgrade is complete. The aks-kubernetes-pods.yml file is provided in the attachment of the upgrade email.

$ kubectl delete -f aks-kubernetes-pods.yml
$ kubectl apply -f aks-kubernetes-pods.yml

During the upgrade, there is no need to delete the old PVCs and their corresponding PVs. Because the PV has the RWO (Read-Write-Once) attribute, if the PVC is deleted, the corresponding PV also needs to be deleted and then recreated (this will not affect the already persisted data).
