page-rule

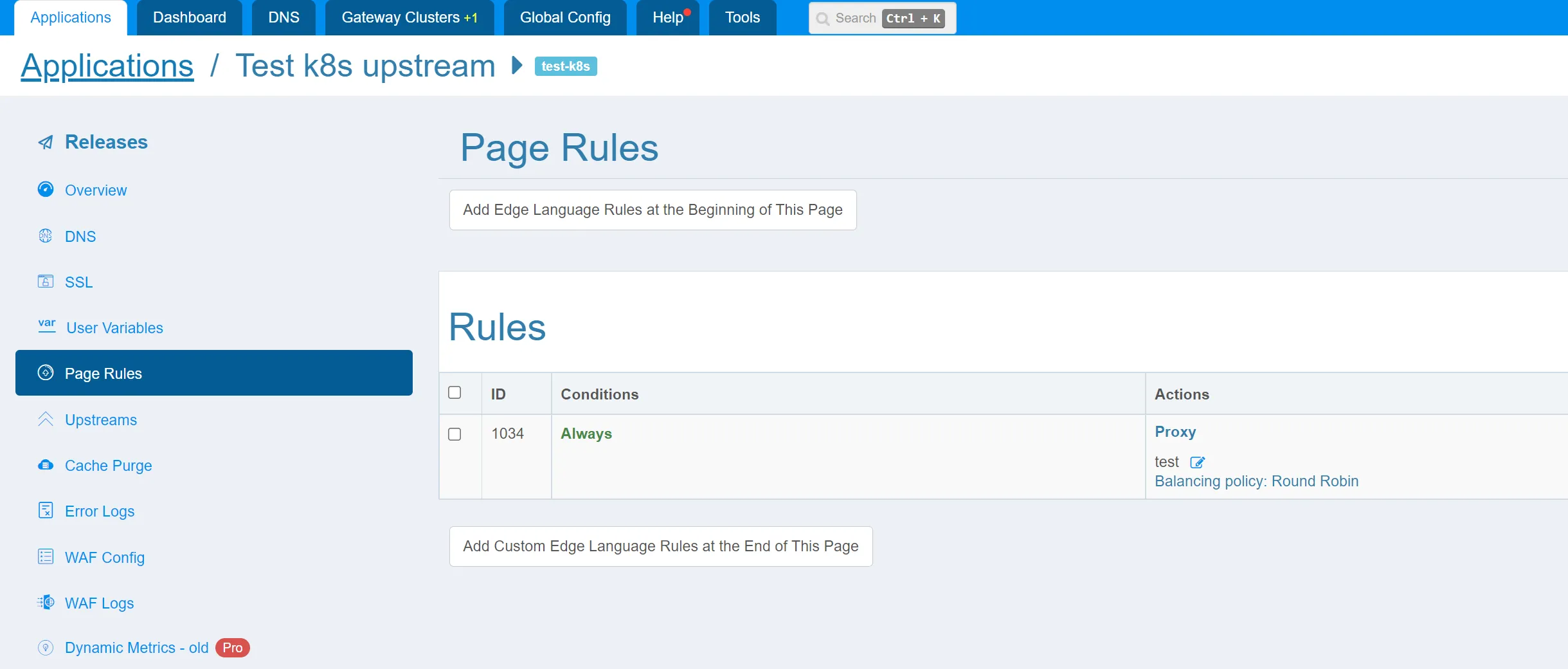

This command corresponds to the functions on the page of page rules.
Usage: oredge page-rule ACTION [OPTIONS]
ACTION:
create
list
show
modify
delete
GLOBAL OPTIONS:
--help
--show-api print restful api request.
--json print json format.
--config specify config file, default is ~/.oredge/config.
Create a page rule
Usage: oredge rule create [http] [OPTIONS]
OPTIONS:
--http string application http id.
--action json action, can add multiple times.
--cache json cache.
--comment string comment.
--condition json condition, can add multiple times.
--content json content.
--last bool last, true or false.
--order integer order.
--proxy json proxy.
--waf json waf.
GLOBAL OPTIONS:
--help
--show-api print restful api request.
--json print json format.
--config specify config file, default is ~/.oredge/config.
For how to specify a page rule, check rule definition part.
Arguments definition
--http "http id"
Specify to which HTTP application the rule is created.
You can specify it in two method
oredge rule create 1
or
oredge rule create --http 1
--comment "description string"
You can add a description to this rule
--condition "json string"
This parameter can be used to add multiple conditions to hit the rule.
The condition is a json string. Check the detailed description and examples.
--action "json string"
This parameter can be used to add multiple actions to the request.
The action is a json string. Check the detailed description and examples.
--last "true"
Skip any subsequent page rules when this rule matches, default is false.
--order position
The order of the rule
--content "json"
This parameter set the static content of the rule.
Example:
> oredge create page-rule 1 --content '{"content":{"favicon":12}}'
ID: 1-1
--cache "json"
This parameter configure the cache of the rule. Check the detailed description and examples.
--proxy "json string"
This parameter can be used to add proxy to the specified upstream. The proxy is a json string.
Check the detailed description and examples.
--waf "json string"
This parameter can be used to add waf configuration of the rule.
The waf is a json string.
Example:
oredge create page-rule 1 --waf '{"rule_sets":[6,8,14,15],"action":"log","threshold_score":100}' \
--condition '{"variable":{"name":"uri"},"operator":{"name":"eq"},"values":[{"type":"str","val":"/a/b"}]}'
List page rules
Usage: oredge rule list [http] [OPTIONS]
OPTIONS:
--page integer page, 1(default).
--page-size integer page size, 20(default).
--http integer http id.
GLOBAL OPTIONS:
--help
--show-api print restful api request.
--json print json format.
--config specify config file, default is ~/.oredge/config.
Example
# oredge rule list 892
ID CREATE TIME MODIFY TIME
892-1551 2021-07-15 07:09:59 2021-07-15 07:09:59
Get details of a page rule
Usage: oredge rule show [id] [OPTIONS]
OPTIONS:
--id integer id.
GLOBAL OPTIONS:
--help
--show-api print restful api request.
--json print json format.
--config specify config file, default is ~/.oredge/config.
Example
# oredge rule show 892-1551
ID : 892-1551
CREATE TIME: 2021-07-15 07:09:59
MODIFY TIME: 2021-07-15 07:09:59
Modify a page rule
Usage: oredge rule modify [id] [OPTIONS]
OPTIONS:
--id integer id.
--action json action, can add multiple times.
--cache json cache.
--comment string comment.
--condition json condition, can add multiple times.
--content json content.
--last bool last, true or false.
--order integer order.
--proxy json proxy.
--waf json waf.
GLOBAL OPTIONS:
--help
--show-api print restful api request.
--json print json format.
--config specify config file, default is ~/.oredge/config.
Example
# oredge rule modify 892-1551 --condition 'xxx'
OK
Delete a page rule
Usage: oredge rule delete [id] [OPTIONS]
OPTIONS:
--id integer id.
GLOBAL OPTIONS:
--help
--show-api print restful api request.
--json print json format.
--config specify config file, default is ~/.oredge/config.
Example
# oredge rule delete 892-1551
OK
Rule definition
A page rule is basically constructed by a condition part and an action part.
Condition
A condition is formed by 3 parts, variable, operator, values.
For example, a condition like var1 equals 3 has:
- variable
var1: this can be a user variable, or a global variable defined in advance, or you can choose one of the builtin variables list; - operator
equals: choose one which suits your need in operators list - value
3: value part can be specified by type, check value definition
You can have multiple condition items.
| name | type | required | description |
|---|---|---|---|
| variable | object | yes | see variable definition |
| operator | object | yes | see operator definition |
| values | array | yes | an array of value, see value definition |
| caseless | bool | yes | case-insensitive |
Variable definition
| name | type | required | description |
|---|---|---|---|
| name | string | no | variable name, see builtin variable list |
| user_var | integer | no | user variable id |
| global_var | integer | no | global variable id |
| args | string | no | some variables needs args, see builtin variable list |
Note: only one of
name,user_var,global_varmust be set.
Builtin variable list
| name | need args | args | operators | description |
|---|---|---|---|---|
| uri | no | eq,ne,lt,le,gt,ge,contains,contains-word,prefix,suffix,!contains,!contains-word,!prefix,!suffix | URI | |
| uri-arg | yes | string | eq,ne,lt,le,gt,ge,contains,contains-word,prefix,suffix,!contains,!contains-word,!prefix,!suffix,==,!=,<,<=,>,>=,is-empty,!is-empty | URI argument |
| uri-seg | yes | integer | eq,ne,lt,le,gt,ge,contains,contains-word,prefix,suffix,!contains,!contains-word,!prefix,!suffix,==,!=,<,<=,>,>=,is-empty,!is-empty | URI segment |
| query-string | no | eq,ne,lt,le,gt,ge,contains,contains-word,prefix,suffix,!contains,!contains-word,!prefix,!suffix | Query string | |
| sorted-query-string | no | eq,ne,lt,le,gt,ge,contains,contains-word,prefix,suffix,!contains,!contains-word,!prefix,!suffix | Sorted URI argument | |
| host | no | eq,ne,lt,le,gt,ge,contains,contains-word,prefix,suffix,!contains,!contains-word,!prefix,!suffix | Host | |
| req-method | no | eq,ne | Request method | |
| req-cookie | yes | string | eq,ne,lt,le,gt,ge,contains,contains-word,prefix,suffix,!contains,!contains-word,!prefix,!suffix,==,!=,<,<=,>,>=,is-empty,!is-empty | Request cookie |
| req-header | yes | string | eq,ne,lt,le,gt,ge,contains,contains-word,prefix,suffix,!contains,!contains-word,!prefix,!suffix,==,!=,<,<=,>,>=,is-empty,!is-empty | Request header |
| scheme | no | eq,ne | Scheme | |
| server-port | no | ==,!=,<,<=,>,>= | Server Port | |
| server-addr | no | ~~,!~~,eq,ne,lt,le,gt,ge,contains,contains-word,prefix,suffix,!contains,!contains-word,!prefix,!suffix | Server address | |
| first-x-forwarded-addr | no | ~~,!~~,eq,ne,lt,le,gt,ge,contains,contains-word,prefix,suffix,!contains,!contains-word,!prefix,!suffix | First address in X-Forwarded-For | |
| last-x-forwarded-addr | no | ~~,!~~,eq,ne,lt,le,gt,ge,contains,contains-word,prefix,suffix,!contains,!contains-word,!prefix,!suffix | Last address in X-Forwarded-For | |
| user-agent | no | eq,ne,lt,le,gt,ge,contains,contains-word,prefix,suffix,!contains,!contains-word,!prefix,!suffix,==,!=,<,<=,>,>=,is-empty,!is-empty | User agent | |
| User agent is mobile | no | is-true,!is-true | User agent is mobile | |
| client-continent | yes | string | eq,ne | Client continent |
| client-country | yes | string | eq,ne | Client country/region |
| client-province | yes | string | eq,ne | Client provinces (China) |
| client-city | yes | string | eq,ne | Client city |
| client-addr | no | ~~,!~~,eq,ne,lt,le,gt,ge,contains,contains-word,prefix,suffix,!contains,!contains-word,!prefix,!suffix | Client address | |
| ssl-client-s-dn | no | eq,ne,lt,le,gt,ge,contains,contains-word,prefix,suffix,!contains,!contains-word,!prefix,!suffix,==,!=,<,<=,>,>=,is-empty,!is-empty | SSL Client Subject DN |
Operator definition
| name | type | required | description |
|---|---|---|---|
| name | string | yes | the name of the operator, see operator list |
Operator list
Different operator support different value types.
| operator | value type |
|---|---|
| eq | str,rx,wc |
| ne | str,rx,wc |
| lt | str |
| le | str |
| gt | str |
| ge | str |
| contains | str,rx,wc |
| contains-word | str,rx,wc |
| prefix | str,rx,wc |
| suffix | str,rx,wc |
| !contains | str,rx,wc |
| !contains-word | str,rx,wc |
| !prefix | str,rx,wc |
| !suffix | str,rx,wc |
| == | str |
| != | str |
| < | str |
| <= | str |
| > | str |
| >= | str |
| is-empty | |
| !is-empty | |
| is-true | |
| !is-true | |
| ~~ | netaddr,ip-list |
| !~~ | netaddr,ip-list |
Value definition
| name | type | required | description |
|---|---|---|---|
| type | string | yes | str,rx,wc,netaddr,uv,global-uv,ip-list, see operator list |
| val | string | yes |
Condition examples
- uri example
> oredge create page-rule 1 \
--condition '{"variable":{"name":"uri"},"operator":{"name":"eq"},"values":[{"type":"str","val":"/a/b"}]}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- uri-arg example
> oredge create page-rule 1 \
--condition '{"operator":{"name":"eq"},"variable":{"name":"uri-arg","args":"foo"},"values":[{"type":"str","val":"bar"}]}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- uri-seg example
> oredge create page-rule 1 \
--condition '{"variable":{"name":"uri-seg","args":"1"},"operator":{"name":"eq"},"values":[{"type":"str","val":"foo"}]}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- query-string example
> oredge create page-rule 1 \
--condition '{"variable":{"name":"query-string"},"operator":{"name":"prefix"},"values":[{"type":"str","val":"foo"}]}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- sorted-query-string example
> oredge create page-rule 1 \
--condition '{"variable":{"name":"sorted-query-string"},"values":[{"type":"str","val":"foo"}],"operator":{"name":"prefix"}}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- host example
> oredge create page-rule 1 \
--condition '{"variable":{"name":"host"},"values":[{"type":"str","val":"foo"}],"operator":{"name":"eq"},"caseless":true}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- req-method example
> oredge create page-rule 1 \
--condition '{"operator":{"name":"eq"},"values":[{"type":"str","val":"GET"}],"caseless":false,"variable":{"name":"req-method"}}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- req-cookie example
> oredge create page-rule 1 \
--condition '{"operator":{"name":"eq"},"values":[{"type":"str","val":"bar"}],"variable":{"name":"req-cookie","args":"foo"}}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- req-header example
> oredge create page-rule 1 \
--condition '{"operator":{"name":"eq"},"values":[{"type":"str","val":"bar"}],"variable":{"name":"req-header","args":"foo"}}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- scheme example
> oredge create page-rule 1 \
--condition '{"operator":{"name":"eq"},"values":[{"type":"str","val":"http"}],"variable":{"name":"scheme"}}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- server-port example
> oredge create page-rule 1 \
--condition '{"operator":{"name":"=="},"values":[{"type":"str","val":"80"}],"variable":{"name":"server-port"}}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- server-addr example
> oredge create page-rule 1 \
--condition '{"operator":{"name":"eq"},"values":[{"type":"str","val":"192.168.0.1"}],"variable":{"name":"server-addr"}}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- first-x-forwarded-addr example
> oredge create page-rule 1 \
--condition '{"operator":{"name":"~~"},"values":[{"type":"netaddr","val":"192.168.0.1"}],"variable":{"name":"first-x-forwarded-addr"}}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
> oredge create page-rule 1 \
--condition '{"operator":{"name":"~~"},"values":[{"type":"ip-list","val":"15"}],"variable":{"name":"first-x-forwarded-addr"}}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- last-x-forwarded-addr example
> oredge create page-rule 1 \
--condition '{"operator":{"name":"~~"},"values":[{"type":"netaddr","val":"192.168.0.1"}],"variable":{"name":"last-x-forwarded-addr"}}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
> oredge create page-rule 1 \
--condition '{"operator":{"name":"~~"},"values":[{"type":"ip-list","val":"15"}],"variable":{"name":"last-x-forwarded-addr"}}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- user-agent example
> oredge create page-rule 1 \
--condition '{"operator":{"name":"eq"},"values":[{"type":"str","val":"foo"}],"variable":{"name":"user-agent"}}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- ua-is-mobile example
> oredge create page-rule 1 \
--condition '{"operator":{"name":"is-true"},"variable":{"name":"ua-is-mobile"}}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
> oredge create page-rule 1 \
--condition '{"operator":{"name":"!is-true"},"variable":{"name":"ua-is-mobile"}}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- client-continent example
> oredge create page-rule 1 \
--condition '{"operator":{"name":"eq"},"variable":{"name":"client-continent"},"values":[{"type":"str","val":"AF"}]}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- client-country example
> oredge create page-rule 1 \
--condition '{"operator":{"name":"eq"},"values":[{"type":"str","val":"UK"}],"variable":{"name":"client-country"}}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- client-province example
> oredge create page-rule 1 \
--condition '{"values":[{"type":"str","val":"Beijing"}],"operator":{"name":"eq"},"variable":{"name":"client-province"}}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- client-city example
> oredge create page-rule 1 \
--condition '{"operator":{"name":"eq"},"values":[{"type":"str","val":"London"}],"variable":{"name":"client-city"}}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- client-addr example
> oredge create page-rule 1 \
--condition '{"operator":{"name":"eq"},"values":[{"type":"str","val":"192.168.1.1"}],"variable":{"name":"client-addr"}}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- ssl-client-s-dn example
> oredge create page-rule 1 \
--condition '{"operator":{"name":"eq"},"values":[{"type":"str","val":"foo.com"}],"variable":{"name":"ssl-client-s-dn"}}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- global user variable example
> oredge create page-rule 1 \
--condition '{"operator":{"name":"eq"},"values":[{"type":"str","val":"foo"}],"variable":{"global_var":7}}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
- gateway-cluster example
> oredge create page-rule 1 \
--condition '{"operator":{"name":"eq"},"values":[{"type":"str","val":"1"}],"variable":{"name":"gateway-cluster"}}' \
--action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
Action
| name | type | description |
|---|---|---|
| type | string | action type |
| ? | object | the name is equal to value of type, for example {type: "set-uri", set-uri: {...}} |
You can also use custom
Available builtin action list
set-uri
Set URI
| name | type | description |
|---|---|---|
| uri | string |
Example:
> oredge create page-rule 1 --action '{ "type": "set-uri", "set-uri": { "uri": "/foo/bar" } }'
ID: 1-1
add-uri-prefix
Add URI prefix
| name | type | description |
|---|---|---|
| value | string |
Example:
> oredge create page-rule 1 --action '{"type":"add-uri-prefix","add-uri-prefix":{"value":"/foo"}}'
ID: 1-1
rm-uri-prefix
Remove URI prefix
| name | type | description |
|---|---|---|
| value | string |
Example:
> oredge create page-rule 1 --action '{"type":"rm-uri-prefix","rm-uri-prefix":{"value":"/foo"}}'
ID: 1-1
rm-uri-seg
Remove URI segment
| name | type | description |
|---|---|---|
| value | integer |
Example:
> oredge create page-rule 1 --action '{"type":"rm-uri-seg","rm-uri-seg":{"index":1}}'
ID: 1-1
set-req-header
Set request header
| name | type | description |
|---|---|---|
| header | string | |
| value | string |
Example:
> oredge create page-rule 1 --action '{"type":"set-req-header","set-req-header":{"header":"foo","value":"bar"}}'
ID: 1-1
add-req-header
Add request header
| name | type | description |
|---|---|---|
| header | string | |
| value | string |
Example:
> oredge create page-rule 1 --action '{"type":"add-req-header","add-req-header":{"header":"foo","value":"bar"}}'
ID: 1-1
set-uri-arg
Set URI argument
| name | type | description |
|---|---|---|
| arg | string | |
| value | string |
Example:
> oredge create page-rule 1 --action '{"type":"set-uri-arg","set-uri-arg":{"arg":"foo","value":"bar"}}'
ID: 1-1
add-uri-arg
Add URI argument
| name | type | description |
|---|---|---|
| arg | string | |
| value | string |
Example:
> oredge create page-rule 1 --action '{"type":"add-uri-arg","add-uri-arg":{"arg":"foo","value":"bar"}}'
ID: 1-1
rm-uri-arg
Remove URI argument
| name | type | description |
|---|---|---|
| name | string |
Example:
> oredge create page-rule 1 --action '{"type":"rm-uri-arg","rm-uri-arg":{"name":"foo"}}'
ID: 1-1
set-proxy-uri
Set proxy URI
| name | type | description |
|---|---|---|
| value | string | |
| arg | string |
Example:
> oredge create page-rule 1 --action '{"type":"set-proxy-uri","set-proxy-uri":{"uri":"/foo"}}'
ID: 1-1
rewrite-proxy-uri-prefix
Rewrite proxy URI prefix
| name | type | description |
|---|---|---|
| prefix | string | |
| replacement | string |
Example:
> oredge create page-rule 1 --action '{"type":"rewrite-proxy-uri-prefix","rewrite-proxy-uri-prefix":{"prefix":"/foo","replacement":"/bar"}}'
ID: 1-1
set-proxy-header
Set proxy header
| name | type | description |
|---|---|---|
| header | string | |
| value | string | |
| el_var | string |
Example:
> oredge create page-rule 1 --action '{"type":"set-proxy-header","set-proxy-header":{"header":"Host","value":"foo"}}'
ID: 1-1
append-proxy-header-value
Append proxy header value
| name | type | description |
|---|---|---|
| header | string | |
| value | string | |
| el_var | string |
Example:
> oredge create page-rule 1 --action '{"type":"append-proxy-header-value","append-proxy-header-value":{"el_var":"client-addr","header":"X-Forwarded-For"}}'
ID: 1-1
enable-proxy-cache-revalidate
Enable proxy cache revalidate
| name | type | description |
|---|---|---|
| enabled | string |
Example:
> oredge create page-rule 1 --action '{"type":"enable-proxy-cache-revalidate","enable-proxy-cache-revalidate":{"enabled":true}}'
ID: 1-1
set-proxy-cache-use-stale
Use stale proxy cache
| name | type | description |
|---|---|---|
| value | string |
Example:
> oredge create page-rule 1 --action '{"type":"set-proxy-cache-use-stale","set-proxy-cache-use-stale":{"args":["error","timeout","invalid_header","updating","http_500","http_502","http_503","http_504","http_403","http_404","http_429"]}}'
ID: 1-1
redirect
Redirect
| name | type | description |
|---|---|---|
| args | string | |
| code | string | |
| host | string | |
| port | string | |
| scheme | string | |
| url | string |
Example:
> oredge create page-rule 1 --action '"type":"redirect","redirect":{"scheme":"http","port":80,"url":"/foo","args":"foo=bar","host":"foo.com","code":302}}'
ID: 1-1
| name | type | description |
|---|---|---|
| content_type | string |
Example:
> oredge create page-rule 1 --action '{"type":"print","print":{"msg":"<!doctype html>\n<html>\n<head>\n <title>Response</title>\n</head>\n<body>\n</body>\n</html>","content_type":"text/html"}}'
ID: 1-1
exit
Exit
| name | type | description |
|---|---|---|
| code | string |
Example:
> oredge create page-rule 1 --action '{"type":"exit","exit":{"code":204}}'
ID: 1-1
send-static-file
Return static file
| name | type | description |
|---|---|---|
| start_index | string | |
| end_index | string |
Example:
> oredge create page-rule 1 --action '{"type":"send-static-file","send-static-file":{"start_index":1,"end_index":2}}'
ID: 1-1
sleep
sleep
| name | type | description |
|---|---|---|
| time | string |
Example:
> oredge create page-rule 1 --action '{"type":"sleep","sleep":{"time":2}}'
ID: 1-1
limit-req-rate
Limit request rate
| name | type | description |
|---|---|---|
| edge_captcha_clearance_time | string | |
| error_page_status_code | string | |
| hcaptcha_clearance_time | string | |
| limit_key | string | |
| rate_reject | string | |
| rate_reject_unit | string | |
| rate_shape | string | |
| rate_shape_unit | string | |
| reject_action | string |
Example:
> oredge create page-rule 1 --action '{"type":"limit-req-rate","limit-req-rate":{"limit_key":"client-addr","rate_shape":1,"rate_shape_unit":"r/s","rate_reject":1,"rate_reject_unit":"r/s","reject_action":"error_page","error_page_status_code":503,"hcaptcha_clearance_time":60,"edge_captcha_clearance_time":60}}'
ID: 1-1
limit-req-count
Limit request count
| name | type | description |
|---|---|---|
| count_reject | string | |
| count_time_window | string | |
| limit_key | string |
Example:
> oredge create page-rule 1 --action '{"type":"limit-req-count","limit-req-count":{"limit_key":"client-addr","count_reject":10,"count_time_window":1}}'
ID: 1-1
block-req
Block request
| name | type | description |
|---|---|---|
| block_threshold | string | |
| block_time | string | |
| limit_key | string | |
| observe_interval | string | |
| rate_reject | string | |
| rate_reject_unit | string | |
| rate_shape | string | |
| rate_shape_unit | string |
Example:
> oredge create page-rule 1 --action '{"type":"block-req","block-req":{"limit_key":"client-addr","rate_shape":1,"rate_shape_unit":"r/s","rate_reject":1,"rate_reject_unit":"r/s","block_threshold":2,"observe_interval":5,"block_time":60}}'
ID: 1-1
set-resp-header
Set response header
| name | type | description |
|---|---|---|
| name | string | |
| value | string | |
| el_var_arg | string |
Example:
> oredge create page-rule 1 --action '{"type":"set-resp-header","set-resp-header":{"name":"foo","value":"bar"}}'
ID: 1-1
add-resp-header
Add response header
| name | type | description |
|---|---|---|
| name | string | |
| value | string | |
| el_var_arg | string |
Example:
> oredge create page-rule 1 --action '{"type":"add-resp-header","add-resp-header":{"name":"foo","value":"bar"}}'
ID: 1-1
rm-resp-header
Remove response header
| name | type | description |
|---|---|---|
| name | string |
Example:
> oredge create page-rule 1 --action '{"type":"rm-resp-header","rm-resp-header":{"name":"foo"}}'
ID: 1-1
apply-std-mime-types
| name | type | description |
|---|---|---|
| force | bool |
Example:
> oredge create page-rule 1 --action '{"type":"apply-std-mime-types","apply-std-mime-types":{"force":true}}'
ID: 1-1
expires
| name | type | description |
|---|---|---|
| force | bool | |
| max_age | integer | |
| max_age_unit | string |
Example:
> oredge create page-rule 1 --action '{"type":"expires","expires":{"max_age":1,"max_age_unit":"hour","force":true}}'
ID: 1-1
set-resp-cookie
| name | type | description |
|---|---|---|
| el_var_arg | string | |
| http_only | integer | |
| max_age | string | |
| max_age_unit | string | |
| name | string | |
| path | string | |
| value | string |
Example:
> oredge create page-rule 1 --action '{"type":"set-resp-cookie","set-resp-cookie":{"http_only":true,"max_age":1,"max_age_unit":"hour","name":"foo","el_var":"userid","domain":"bar.com","path":"/foo/bar"}}'
ID: 1-1
limit-resp-data-rate
| name | type | description |
|---|---|---|
| rate | string | |
| rate_unit | integer |
Example:
> oredge create page-rule 1 --action '{"type":"limit-resp-data-rate","limit-resp-data-rate":{"rate_unit":"kB/s","rate":10}}'
ID: 1-1
user-code
| name | type | description |
|---|---|---|
| el | string |
Example:
> oredge create page-rule 1 --action '{"type":"user-code","user-code":{"el":"my Str $s = \"hello world\";"}}'
ID: 1-1
enable-openidc-authentication
| name | type | description |
|---|---|---|
| client_id | string | |
| client_secret | string | |
| discovery | string | |
| logout_path | string | |
| redirect_uri | string | |
| scope | string | |
| ssl_verify | string | |
| timeout | string | |
| timeout_unit | string | |
| token_endpoint_auth_method | string |
Example:
> oredge create page-rule 1 --action '{"type":"enable-openidc-authentication","enable-openidc-authentication":{"token_endpoint_auth_method":"client_secret_basic","scope":"openid","ssl_verify":false,"timeout":1000,"timeout_unit":"ms","logout_path":"/logout","client_id":"foo","client_secret":"bar","discovery":"http://foo.com/a/b","redirect_uri":"http://foo.com/c/d"}}'
ID: 1-1
enable-websocket
Example:
> oredge create page-rule 1 --action '{"type":"enable-websocket","enable-websocket":{}}'
ID: 1-1
enable-gateway-brotli
| name | type | description |
|---|---|---|
| enabled | bool |
Example:
> oredge create page-rule 1 --action '{"type":"enable-gateway-brotli","enable-gateway-brotli":{"enabled":true}}'
ID: 1-1
enable-gateway-gzip
| name | type | description |
|---|---|---|
| enabled | bool |
Example:
> oredge create page-rule 1 --action '{"type":"enable-gateway-gzip","enable-gateway-gzip":{"enabled":true}}'
ID: 1-1
intercept-upstream-errors
| name | type | description |
|---|---|---|
| enabled | bool |
Example:
> oredge create page-rule 1 --action '{"type":"intercept-upstream-errors","intercept-upstream-errors":{"enabled":true}}'
ID: 1-1
errlog
| name | type | description |
|---|---|---|
| level | string | |
| msg | string |
Example:
> oredge create page-rule 1 --action '{"type":"errlog","errlog":{"level":"error","msg":"foo"}}'
ID: 1-1
set-brotli-types
| name | type | description |
|---|---|---|
| types | array |
Example:
> oredge create page-rule 1 --action '{"type":"set-brotli-types","set-brotli-types":{"types":["foo", "bar"]}}'
ID: 1-1
set-gzip-types
| name | type | description |
|---|---|---|
| types | array |
Example:
> oredge create page-rule 1 --action '{"type":"set-gzip-types","set-gzip-types":{"types":["foo","bar"]}}'
ID: 1-1
set-max-body-size
| name | type | description |
|---|---|---|
| value | integer | |
| unit | string |
Example:
> oredge create page-rule 1 --action '{"type":"set-max-body-size","set-max-body-size":{"value":1,"unit":"mB"}}'
ID: 1-1
set-var
| name | type | description |
|---|---|---|
| global_var_id | integer | |
| value | string |
Example:
> oredge create page-rule 1 --action '{"type":"set-var","set-var":{"global_var_id":5,"value":"yes"}}'
ID: 1-1
set-error-page
Example:
> oredge create page-rule 1 --action '{"type":"set-error-page","set-error-page":{"type":"raw-content","content_type":"text/html; charset=utf8","content":"<!doctype html>\n<html lang=\"en\">\n<head>\n <title>404 NOT FOUND</title>\n</head>\n<body>\n</body>\n</html>","status":[403,404,500,502,503,504]}}'
ID: 1-1
disable-req-buffering
Example:
> oredge create page-rule 1 --action '{"type":"disable-req-buffering","disable-req-buffering":{}}'
ID: 1-1
enable-basic-authentication
Example:
> oredge create page-rule 1 --action '{"type":"enable-basic-authentication","enable-basic-authentication":{"app_auth_id":3}}'
ID: 1-1
Using custom global action
You can apply predefined global action by specified the id.
> oredge create page-rule 1 --action '{"global_action_id":1}'
ID: 1-1
Cache
| name | type | description |
|---|---|---|
| browserCache | bool | |
| browser_ttl | integer | |
| browser_ttl_unit | string | |
| cluster_hash | bool | Use consistent hashing to share the response cache in each gateway cluster. |
| default_ttls | array | |
| cache_key | array | the key of cache content, see cache key list |
| enableDefaultTtl | bool | When disabled (which is the default), we won’t cache responses without any cache controlling headers like Expires and Cache-Control. When enabled, we will cache these responses with force. If the backend servers explicitly disable caching, then the cache will still be bypassed even when this option is enabled. |
Cache key list
| name | need args |
|---|---|
| uri | no |
| uri-arg | yes |
| uri-seg | yes |
| query-string | no |
| sorted-query-string | no |
| req-method | no |
| req-cookie | yes |
| req-header | yes |
| scheme | no |
| first-x-forwarded-addr | no |
| last-x-forwarded-addr | no |
| user-agent | no |
| ua-is-mobile | no |
| client-continent | no |
| client-province | no |
| client-city | no |
| client-isp | no |
| ssl-client-s-dn | no |
Cache examples
> oredge create page-rule 1 --cache '{"cache_key":[{"name":"uri"},{"name":"query-string"},{"name":"uri-seg","args":"1"}],"enableDefaultTtl":true,"enforce_cache":false,"cluster_hash":true,"enableConvertHead":true,"enable_global":true,"browserCache":true,"browser_ttl":1,"browser_ttl_unit":"min","disable_convert_head":false,"default_ttls":[{"ttl":1,"ttl_unit":"min","status":200}]}' \
--proxy '{"upstream":[{"cluster":1836,"weight":1,"upstream":null}],"backup_upstream":[],"upstream_el_code":"","balancer":{"algorithm":"roundrobin","variables":[]},"useSameBalancingPolicy":true,"sticky":{"enable":false,"key":"Edge-Sticky","level":"upstream","ttl":0,"mode":"none"},"retry_condition":["error","timeout","invalid_header","http_500","http_502","http_504"],"connect_timeout":6,"connect_timeout_unit":"s","send_timeout":6,"send_timeout_unit":"s","read_timeout":6,"read_timeout_unit":"s","retries":1,"layer_policy":null,"balancer2":null}'
Proxy
| name | type | description |
|---|---|---|
| balancer | object | balancer algorithm |
| upstream | object | |
| backup_upstream | object | |
| upstream_el_code | string | you can use edgelang instead of upstream and backup_upstream |
| connect_timeout | integer | |
| connect_timeout_unit | string | s,ms |
| read_timeout | integer | |
| read_timeout_unit | string | s,ms |
| send_timeout | integer | |
| send_timeout_unit | string | s,ms |
| layer_policy | integer | |
| retries | integer | set to -1 means same as the number of upstream nodes. |
| retry_condition | array | array of string, value must be error,timeout,invalid_header,http_500,http_502,http_504 |
| sticky | object |
balancer
| name | type | description |
|---|---|---|
| algorithm | string | one of hash,chash,roundrobin |
| variables | array | if algorithm is hash or chash, this field is required. |
Variables is an array of object.
The object is like this: {"name" : "uri" } or {"name" : "uri-arg", "args" : "foo"} (for variable need arguments).
All available variables are listed here:
| name | need args |
|---|---|
| uri | no |
| uri-arg | yes |
| uri-seg | yes |
| query-string | no |
| sorted-query-strin | no |
| req-method | no |
| req-cookie | yes |
| req-header | yes |
| scheme | no |
| first-x-forwarded-addr | no |
| last-x-forwarded-addr | no |
| user-agent | no |
| ua-is-mobile | no |
| client-continent | no |
| client-province | no |
| client-city | no |
| client-isp | no |
| ssl-client-s-dn | no |
upstream
| name | type | description |
|---|---|---|
| cluster | integer | upstream id |
| global_cluster | integer | global upstream id |
| k8s_cluster | integer | k8s upstream id |
| global_k8s_cluster | integer | global k8s upstream id |
| weight | integer | weight of the upstream |
sticky
| name | type | description |
|---|---|---|
| enable | bool | |
| key | string | |
| level | string | upstream,server |
| ttl | integer |
Proxy examples
- proxy a upstream
> oredge create page-rule 1 --proxy '{"upstream":[{"cluster":1836,"weight":1}],"backup_upstream":[],"upstream_el_code":"","balancer":{"algorithm":"roundrobin","variables":[]},"useSameBalancingPolicy":true,"sticky":{"enable":false,"key":"Edge-Sticky","level":"upstream","ttl":0,"mode":"none"},"retry_condition":["error","timeout","invalid_header","http_500","http_502","http_504"],"connect_timeout":6,"connect_timeout_unit":"s","send_timeout":6,"send_timeout_unit":"s","read_timeout":6,"read_timeout_unit":"s","retries":1,"layer_policy":null,"balancer2":null}' \
--condition '{"variable":{"name":"uri"},"operator":{"name":"eq"},"values":[{"type":"str","val":"/a/b"}]}'
- proxy a global upstream
> oredge create page-rule 1 --proxy '{"upstream":[{"global_cluster":1836,"weight":1}],"backup_upstream":[],"upstream_el_code":"","balancer":{"algorithm":"roundrobin","variables":[]},"useSameBalancingPolicy":true,"sticky":{"enable":false,"key":"Edge-Sticky","level":"upstream","ttl":0,"mode":"none"},"retry_condition":["error","timeout","invalid_header","http_500","http_502","http_504"],"connect_timeout":6,"connect_timeout_unit":"s","send_timeout":6,"send_timeout_unit":"s","read_timeout":6,"read_timeout_unit":"s","retries":1,"layer_policy":null,"balancer2":null}' \
--condition '{"variable":{"name":"uri"},"operator":{"name":"eq"},"values":[{"type":"str","val":"/a/b"}]}'
- proxy a k8s upstream
> oredge create page-rule 1 --proxy '{"upstream":[{"k8s_cluster":1836,"weight":1}],"backup_upstream":[],"upstream_el_code":"","balancer":{"algorithm":"roundrobin","variables":[]},"useSameBalancingPolicy":true,"sticky":{"enable":false,"key":"Edge-Sticky","level":"upstream","ttl":0,"mode":"none"},"retry_condition":["error","timeout","invalid_header","http_500","http_502","http_504"],"connect_timeout":6,"connect_timeout_unit":"s","send_timeout":6,"send_timeout_unit":"s","read_timeout":6,"read_timeout_unit":"s","retries":1,"layer_policy":null,"balancer2":null}' \
--condition '{"variable":{"name":"uri"},"operator":{"name":"eq"},"values":[{"type":"str","val":"/a/b"}]}'
- proxy a global k8s upstream
> oredge create page-rule 1 --proxy '{"upstream":[{"global_k8s_cluster":1836,"weight":1}],"backup_upstream":[],"upstream_el_code":"","balancer":{"algorithm":"roundrobin","variables":[]},"useSameBalancingPolicy":true,"sticky":{"enable":false,"key":"Edge-Sticky","level":"upstream","ttl":0,"mode":"none"},"retry_condition":["error","timeout","invalid_header","http_500","http_502","http_504"],"connect_timeout":6,"connect_timeout_unit":"s","send_timeout":6,"send_timeout_unit":"s","read_timeout":6,"read_timeout_unit":"s","retries":1,"layer_policy":null,"balancer2":null}' \
--condition '{"variable":{"name":"uri"},"operator":{"name":"eq"},"values":[{"type":"str","val":"/a/b"}]}'
